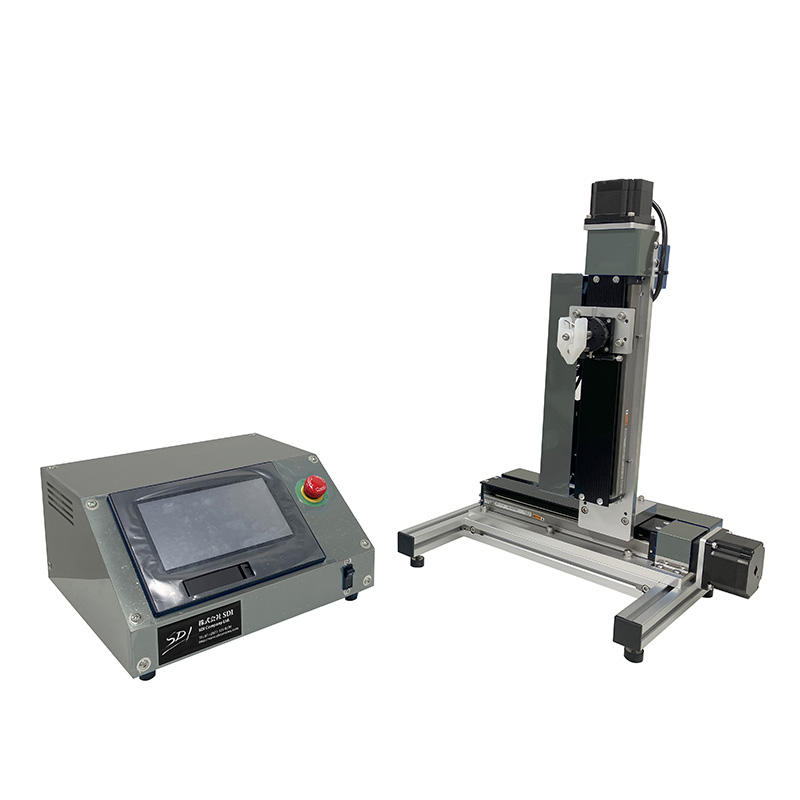

Nano Dip ® Coater ND-0407-N1 (Bi-axial Control of Z-axis & X-axis)
Desktop device for experiments / research / development Specifications /
The most optimum dipcoater for Super Slow Action Speed Dip Coat (Dip Coating) is this dipcoater (Dip Coating Machine) which enabled to adjust working angle by the controlling of working two-axes & Θ angle and diagonal raise-up.
-
2 tank dip
-
2-axis synchronous operation
-
θ-axis operation
-
Request
- Like to coat in imperceptible speed by perpendicular work and with high precision
- Like to coat with acquiring angle and changing solution density
- Like to coat with 2 kinds of liquid in turn (alternately)
- Like to control Film Thickness by changing the speed of raising-up on the way
It was settled with only one this.- Conventional Perpendicular Coating with Super Low Speed is available
- Raising-up with acquiring angle by adjusting Θangle is available
- The Coating with different liquids like as alternation adsorption etc. is available
- Both of independent and compound motions are operational (at two axes
- As new function, consecutive point driving is possible
-
This is the dipcoater (Dip Coating Equipment) to be able to make Dip Coating (Dip Coat) for Glass, Acrylic, Copper Foil and Tube-formed Materials at the super low-speed in nano-unit (variableness every 1nm).
This is suitable to form the Thin Film of the nano-level, the Opal Film and to generate the Particle Array, etc.
That operation adopts a touch panel method. The Operations for Bi-axial Synchronization also Single-axial alone driving both can be done easily.
On the touch panel, Operations for the setting of the Speed Changing Points (up to 16 points as max), the Speed Changes (by 1nm unit), the Repetition Movements and the Memory of the Movement Patterns (up to 8 patterns as max) can be done easily. This system was developed under kind direction from Hirao-Laboratory of Kyoto University.
As the indication of Japanese or English is one-touch change, so it is the most suitable for the place where researchers of foreigners exist.
| Main Specifications | |
|---|---|
| Stroke | Z-axis 150 mm, X-axis 150 mm |
| Minimum Speed (Min.) | 1nm/sec. |
| Maximum Speed (Max) | 60mm/sec. |
| Operating Method | Touch Panel |
| Screen Indication Language | Japanese / English |
| Number of designation points for Transaction Speeds | 16 Points |
| Number of designation points for Stop Positions | 16 Points |
| Number of designation points for Stopping Time | 16 Points |
| Consecutive Driving Mode | Equipped |
| Manual Driving Mode | Equipped |
| Number of Memorized Programs | 8 Programs |
| Monitoring Function: Present Speed | Equipped |
| Monitoring Function: Present Position | Equipped |
| Residual Time of Monitoring | Equipped |
| Repetition Driving | Equipped |
| Standard Clip | Material: Polypropylene (PP) |
| Utility | AC100V,300VA |
| Maximum Weight Capacity | 500g |
| Maximum Processing Size (mm) | H:100mm |
| Linear Driving Mode | Not Equipped |
| Equipment Dimension (mm): not including projections | W:408 D:256 H:509 |
| Control Box Dimension (mm) : not including projections | W:300 D:285 H:163 |
Linear Driving Mode means that stopping time is zero (0) sec. at the changing speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
