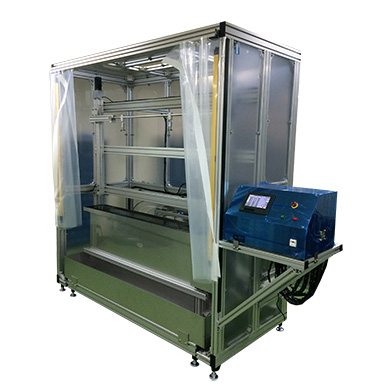

Large size dip coater DT-1704
Desktop device for experiments / research / development Specifications /
Custom dip coater for large size coats. Ideal for horizontally long and curved base materials
-
* A dip coater that dip coats large-sized glass, film, copper plate, acrylic, polycarbonate, and other materials at a pulling speed of 0.1 mm / sec to 60 mm / sec (variable in 0.1 mm / sec increments).
* Maximum stroke is up to 800mm. Ideal for applying horizontally long and curved base materials.
* Supports up to W: 1450, H750, D100mm, Max6.5kg.
| Main Specifications | |
|---|---|
| Stroke | 800mm |
| Minimum Speed (Min.) | 0.1mm/sec(1μm/sec) |
| Maximum Speed (Max) | 60mm/sec(10mm/sec) |
| Operating Method | Touch Panel |
| Screen Indication Language | Japanese |
| Number of designation points for Transaction Speeds | 16 Points |
| Number of designation points for Stop Positions | 16 Points |
| Number of designation points for Stopping Time | 16 Points |
| Consecutive Driving Mode | Equipped |
| Manual Driving Mode | Equipped |
| Number of Memorized Programs | 8 Programs |
| Monitoring Function: Present Speed | Equipped |
| Monitoring Function: Present Position | Equipped |
| Residual Time of Monitoring | Equipped |
| Repetition Driving | Not Equipped |
| Standard Clip | Custom clips |
| Utility | AC100 15A |
| Maximum Weight Capacity | 6.5kg |
| Maximum Processing Size (mm) | W:1450 H750 D100mm t5.0 |
| Linear Driving Mode | Not Equipped |
| Equipment Dimension (mm): not including projections | W:2200 D:1000 H:2400 |
| Control Box Dimension (mm) : not including projections | Not Equipped |
Linear Driving Mode means that stopping time is zero (0) sec. at the changing speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
