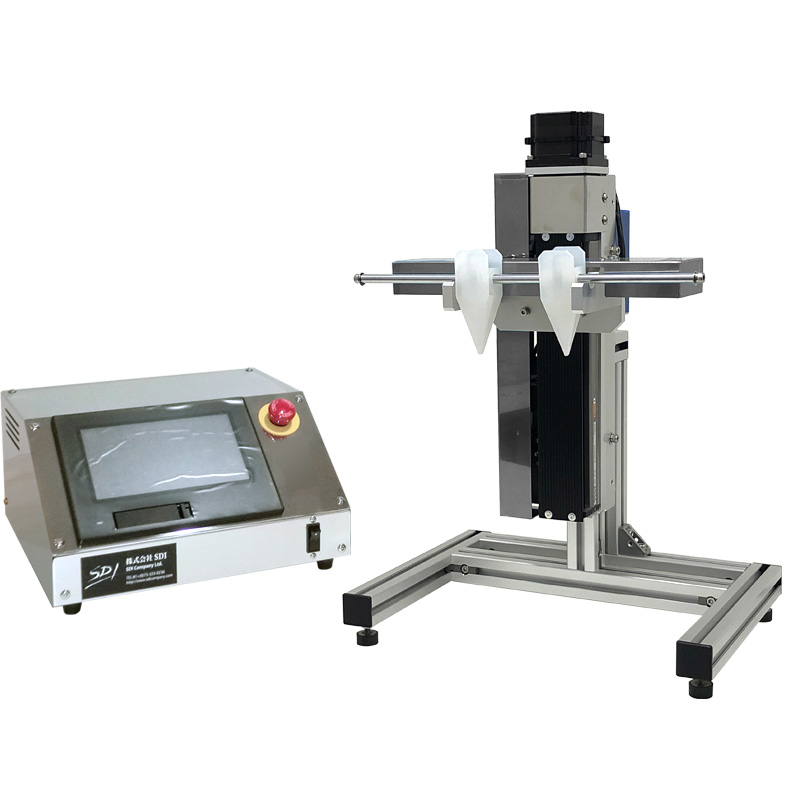

Micro dipcoater MD-0408-N1
Desktop device for experiments / research / development Specifications /
This is the optimum dipcoater for Super Low Speed Dip Coat (Dip Coating) of our sale results the 1st place. Variable range of the speed changing is from 1 nm/sec. to 60 mm/sec
-
This dipcoater is available to Dip Coat for Glass, Acrylic, Copper Foil and Tube-like Materials by Nano Unit Speed (variableness every um).
It is suitable for Separation Film Generation, Particle Array and the Film Thickness Formation in the nano-level. The operation adopts a Touch Panel Method.
On the touch panel, Operations for the setting of the Speed Changing Points (Max 16 points), the Speed Changes (by 1nm unit), the Repetition Movements and the Memory of the Movement Patterns (Max 8 patterns) can be done easily. This system was developed under kind direction from “The National Institute of Advanced Industrial Science and Technology (AIST) Tsukuba”. As the indication of Japanese or English is one-touch change, so it is the most suitable for the place where researchers of foreigners work.
| Main Specifications | |
|---|---|
| Stroke | 150mm (Up to 300mm is available as an option.) |
| Minimum Speed (Min.) | 1nm/sec |
| Maximum Speed (Max) | 60mm/sec |
| Operating Method | Touch Panel |
| Screen Indication Language | Japanese / English |
| Number of designation points for Transaction Speeds | 16 Points |
| Number of designation points for Stop Positions | 16 Points |
| Number of designation points for Stopping Time | 16 Points |
| Consecutive Driving Mode | Equipped |
| Manual Driving Mode | Equipped |
| Number of Memorized Programs | 8 Programs |
| Monitoring Function: Present Speed | Equipped |
| Monitoring Function: Present Position | Equipped |
| Residual Time of Monitoring | Equipped |
| Repetition Driving | Equipped |
| Standard Clip | Material: Polypropylene (PP) |
| Utility | AC100V,250VA |
| Maximum Weight Capacity | 1kg |
| Maximum Processing Size (mm) | H:150mm |
| Linear Driving Mode | Not Equipped |
| Equipment Dimension (mm): not including projections | W:350 D:256 H507:(8kg) |
| Control Box Dimension (mm) : not including projections | W:300 D:285 H:163 |
Linear Driving Mode means that stopping time is zero (0) sec. at the changing speed.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
The numerical value shown in ( ) of Minimum Speed and Maximum Speed columns can be operated by conversion switch.
Manual Driving Mode means that it is doing rise / drop driving (another setting for the rise speed and the drop speed) at one set speed.
The numerical value shown in ( ) of Minimum Speed and Maximum Speed columns can be operated by conversion switch.
