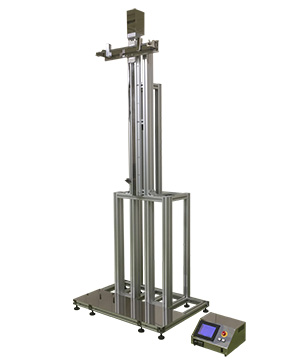

Desk Top Type dipcoater for Big Size Objects use DT-1508-N2-CE
Desktop device for experiments / research / development Specifications /
[This product is CE marking compliant in accordance with the applicable EU directives.]
Supports long, cylindrical and large substrates. High-precision long-scale dip coater with 0.1mm/sec unit control.
-
The large-size dip coater (DT-1508-N2-CE) is a long-scale dip coater designed for uniform coating of long workpieces and large samples. It can handle cylindrical and linear samples such as porous ceramic substrates and catheters, and its precise speed control in 0.01 mm/sec increments ensures a high level of film thickness uniformity. Speed change points and operation patterns can be easily registered and stored from the control panel, allowing for highly reproducible conditions. Despite its long stroke, it provides stable elevation control, making it ideal for various material evaluations, film formation tests, and functional film formation on long substrates. This high-performance model combines large sample compatibility with high-precision control, making it ideal for research and development applications.
| Main Specifications | |
|---|---|
| Stroke | 1000mm |
| Minimum Speed (Min.) | 0.01mm/sec. |
| Maximum Speed (Max) | 60mm/sec. |
| Operating Method | Touch Panel |
| Screen Indication Language | Japanese / English |
| Number of designation points for Transaction Speeds | 16 Points |
| Number of designation points for Stop Positions | 16 Points |
| Number of designation points for Stopping Time | 16 Points |
| Consecutive Driving Mode | Equipped |
| Manual Driving Mode | Equipped |
| Number of Memorized Programs | 8 Programs |
| Monitoring Function: Present Speed | Equipped |
| Monitoring Function: Present Position | Equipped |
| Monitoring Function: Residual Time | Equipped |
| Repetition Driving | Equipped |
| Standard Clip | Material: Stainless Steel |
| Utility | AC100V-240V, 300VA |
| Weight Capacity | 10kg |
| Maximum Processing Size (mm) | H:1050mm |
| Equipment Dimension (mm): not including projections | W:1000 D:700 H:2553(100kg) |
| Control Box Dimension (mm) : not including projections | W:300 D:400 H:200(10kg) |
