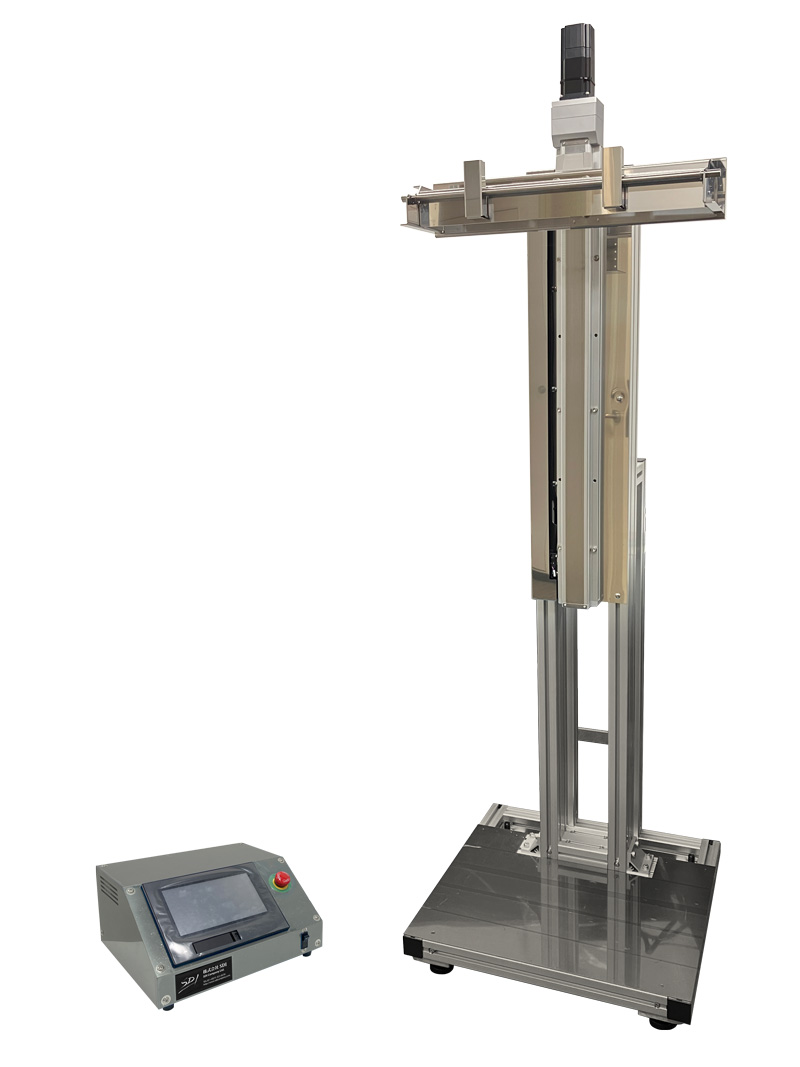

Desk Top dipcoater for Middle Size DT-0502-N2-CE
Desktop device for experiments / research / development Specifications /
[This product is CE marking compliant in accordance with the applicable EU directives.]
This high-precision dip coater, compatible with 700 mm square workpieces, enables precise coating of medium-sized samples on a desktop.
-
The medium-sized benchtop dip coater (DT-0502-N2-CE) is a mid-size dip coater for research and prototyping that can accommodate samples up to 700 mm square. It features variable lift control in 0.01 mm/sec increments, enabling uniform thin-film deposition on a variety of materials, including glass, acrylic, copper foil, and tubes. Simultaneous double-sided coating is possible by immersing and lifting the sample, secured to a hanger, into the coating solution. The control panel allows for easy operation of speed change points and operation patterns (including memory and repeat settings), enabling highly reproducible process control. This benchtop precision coating device boasts high stability and is ideal for evaluating the performance of medium-sized samples and developing materials.
| Main Specifications | |
|---|---|
| Stroke | 700mm |
| Minimum Speed (Min.) | 0.01mm/sec. |
| Maximum Speed (Max) | 60mm/sec. |
| Operating Method | Touch Panel |
| Screen Indication Language | Japanese / English |
| Number of designation points for Transaction Speeds | 16 Points |
| Number of designation points for Stop Positions | 16 Points |
| Number of designation points for Stopping Time | 16 Points |
| Consecutive Driving Mode | Equipped |
| Manual Driving Mode | Equipped |
| Number of Memorized Programs | 8 Programs |
| Monitoring Function: Present Speed | Equipped |
| Monitoring Function: Present Position | Equipped |
| Monitoring Function: Residual Time | Equipped |
| Repetition Driving | Equipped |
| Standard Clip | Material: Stainless Steel |
| Utility | AC100V-240V, 300VA |
| Weight Capacity | 5kg |
| Maximum Processing Size (mm) | H:700mm |
| Equipment Dimension (mm): not including projections | W:600 D:500 H:1899mm(50kg) |
| Control Box Dimension (mm) : not including projections | W:300 D:400 H:200mm(10kg) |
