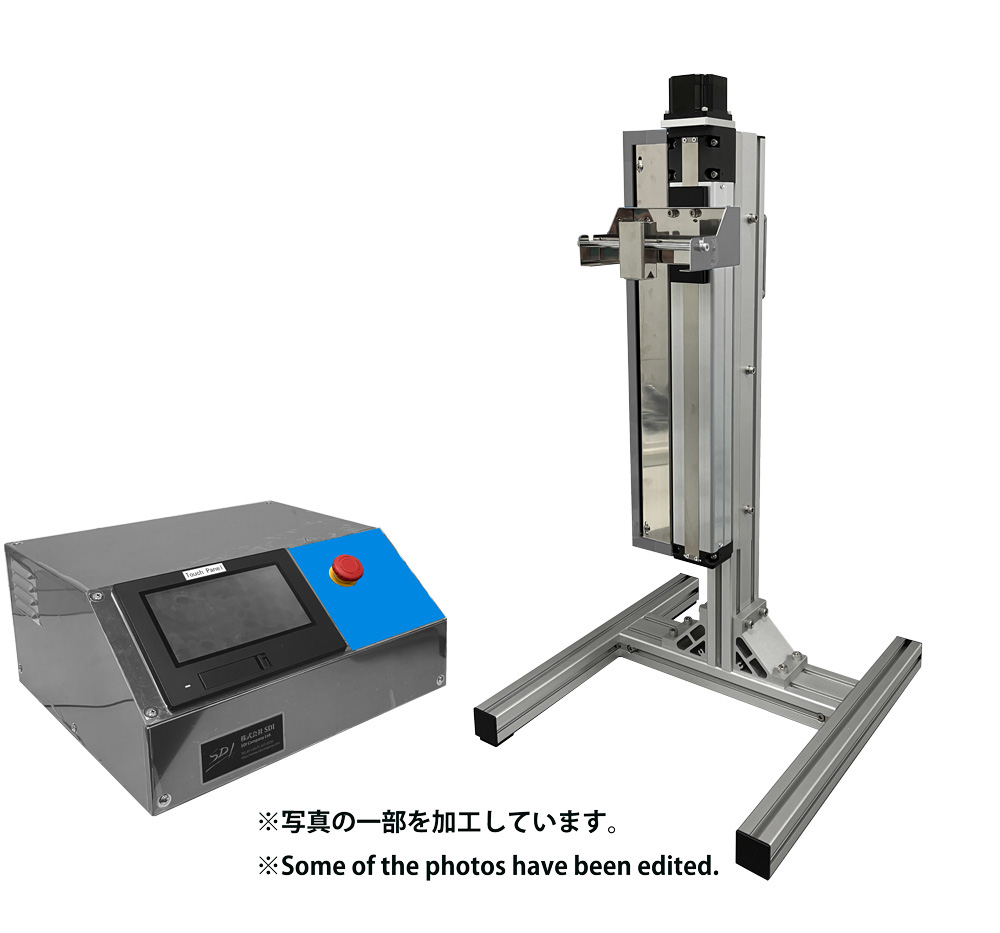

Desk Top Type dipcoater for Small Size Objects use DT-0303-N2-CE
Desktop device for experiments / research / development Specifications /
[This product is CE marking compliant in accordance with the applicable EU directives.]
Achieve precise thin film formation on your desk. A compact dip coater ideal for laboratory testing and small sample evaluation.
-
This small-size benchtop dip coater is a compact model ideal for coating small samples in laboratories or adjacent to analytical equipment. Speed can be adjusted in 0.01 mm/sec increments, making it suitable for a variety of workpieces, including glass pieces, acrylic, metal foil, and tubular samples. By dipping the sample held on a hanger into the coating solution and then lifting it up, a uniform thin film can be formed on both sides simultaneously. Up to eight speed settings and two program operation patterns can be memorized from the operation panel, making repeated experiments and condition testing easy. While minimizing installation space, it ensures consistent coating quality, making it ideal for evaluation and testing in research and development settings.
| Main Specifications | |
|---|---|
| Stroke | 300mm |
| Minimum Speed (Min.) | 0.01mm/sec. |
| Maximum Speed (Max) | 60mm/sec. |
| Operating Method | Touch Panel |
| Screen Indication Language | Japanese / English |
| Number of designation points for Transaction Speeds | 16 Points |
| Number of designation points for Stop Positions | 16 Points |
| Number of designation points for Stopping Time | 16 Points |
| Consecutive Driving Mode | Equipped |
| Manual Driving Mode | Equipped |
| Number of Memorized Programs | 8 Programs |
| Monitoring Function: Present Speed | Equipped |
| Monitoring Function: Present Position | Equipped |
| Monitoring Function: Residual Time | Equipped |
| Repetition Driving | Equipped |
| Standard Clip | Material: Stainless Steel |
| Utility | AC100V-240V, 300VA |
| Weight Capacity | 1kg |
| Maximum Processing Size (mm) | H:300mm |
| Equipment Dimension (mm): not including projections | W:430 D:476 H:815(15kg) |
| Control Box Dimension (mm) : not including projections | W:380 D:400 H:200(10kg) |
